The nation’s network of frozen and refrigerated distribution centers forms a logistical supply chain that is vital to our food safety.  Yet because of the high operational costs of freezing or cooling pallets of product within confined areas, every square inch of storage

and every movement of product must be efficient.  A challenge occurs, however, when frozen storage must be expanded across an irregular landscape that makes traditional, space-efficient, rectangular warehousing impossible.

To continue the growth of its distribution centers in the national logistics supply chain, Zero Mountain had to expand its frozen storage and cooler capacity at its Fort Smith, AR facility.  As a premium cold storage warehousing services provider to the food industry nationwide, the company freezes, stores, and ships an estimated two billion pounds of frozen food and meat annually for numerous Fortune 500 companies.

“We needed to expand our warehouse 100,000 sq. ft. between two existing buildings,” says Joe Rumsey, Zero Mountain’s President and CEO.  “But the landscape didn’t allow for a traditional rectangular shaped warehouse, so one side was built at a sloping angle.  Still, because of the operational cost of frozen and cooler storage, the design had to maximize storage density, capacity, efficiency, and durability.”

Looking to achieve these goals, Rumsey turned to Cisco-Eagle, a materials handling, automation, and storage systems integrator, and Steel King Industries, a storage system and pallet rack manufacturer.

For freezer storage, the companies chose drive-in rack for its cost-effective, high-density storage capacity that requires fewer aisles and provides better cube utilization than selective rack.  Drive-in rack enables storing up to 75% more pallets than selective racking and is ideal for high-traffic and cooler/freezer installations.

To maximize efficient freezer storage design with the warehouse’s untraditional shape, the companies varied racking depth from 2-9 pallets deep.  They also varied pallet opening heights, including some for 100” high pallets for retail and some for 2,000 lbs. double-stacked pallets for export.

The result – an area of approximately 71,000 sq. ft. holds over 8000 pallet positions, plus almost 300 pallet positions for blast cells, which are enclosed areas where product is flash frozen at -30 °F for frozen storage.

The drive-in rack used required exceptional strength.  This was not only to support up to 4,000 lbs. pallet loads of frozen poultry, but also the weight of HVAC equipment for six rack-supported blast cells.

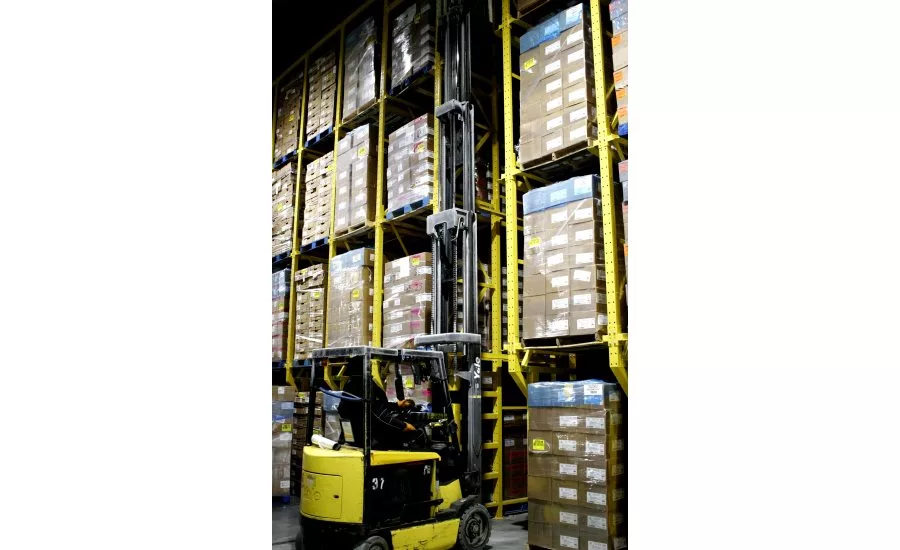

With drive-in rack, forklifts drive directly into the rack to allow storage of two or more pallets deep.  Because forklifts drive directly into the rack, they tend to take more abuse than other rack structures.  Rumsey was concerned that the industry’s typical, light gauge, roll-formed rack would be prone to forklift damage and costly replacement.

As a solution, Cisco-Eagle recommended and Zero Mountain chose SK3000® drive-in rack, a rugged bolted rack with structural channel columns, by Steel King.  A number of rack features helped the company meet its strength, capacity, and durability goals.

Compared to typical racking, the pallet rack constructed of hot-rolled structural channel column with full horizontal and diagonal bracing offers greater frame strength, durability, and cross-sectional area.  All Grade-5 hardware provides greater shear strength, and a heavy 7-gauge wrap-around connector plate ensures a square and plumb installation with a tighter connection and greater moment resistance.

“For the application, the SK3000 drive-in rack provides the most pallet positions per cubic foot, with the highest per pallet and overall capacity,” says Amanda Miller, a Cisco-Eagle engineer on the project, who adds that 2” vertical rack adjustability also helped to optimize efficient storage for a range of pallet sizes.  “Since it is structural, not roll formed, it offers a lot more rigidity and is able to better withstand any potential forklift impact.”

With the drive-in rack, various features came standard that help with longevity.  For strength, the load rails are constructed of durable structural angle steel, and they feature a flared entry design that eases bay access and minimizes potential forklift impact.  Space-saver low profile arms increase clearance and decrease possible product damage.

Welded rail stops also prevent loads from being pushed off the racks and improve safety.  To further increase rack clearance and reduce forklift impact with the rack, an offset leg design option was also chosen.

“The structural drive-in rack provides us with the strength, capacity, and durability we need to withstand decades of use, where forklift impact is expected,” says Rumsey.

For almost 600 pallet positions of additional cooler storage in a smaller room in a dock area, the companies also chose a two-deep pushback rack arrangement around the perimeter of the room.  Bolted tubular SK2500® pallet rack was chosen for economical strength and durability.  Its columns, made of high-strength (55,000 psi minimum) steel, have up to 44-times more resistance to torsional fork truck impacts than open-back roll-formed columns.

Pushback pallet rack offers up to 90 percent more product storage than selective rack systems and up to 400 percent more selectivity than drive-in racks.  Unlike static, single-pallet-deep selective racks, a dynamic pushback rack system allows pallets to be stored two to five deep while providing easy access to a variety of different SKUs.

With pushback rack, pallets are stored behind each other in a series of nested carts and are loaded from the same side of the system, eliminating separate aisles for each function.  Composed of a stable rack along with a series of inclined carts and rails, when one pallet is pulled, the one behind it rolls forward.

“The pushback rack gave us quick loading and unloading with good storage density in a dock area where most people do not usually have storage capacity,” concludes Rumsey.  “Together with our drive-in rack, our warehouse expansion has helped to maximize our capacity and materials handling efficiency.”
